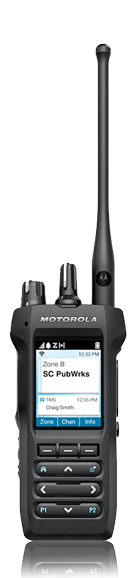

P25 Operation | Single-Band | Ultra Connectivity | Touchscreen
Easy, efficient and essential
Easy to use and simple to manage. The APX N30 single-band P25 portable radio connects your teams to reliable P25 radio networks with all the essential features they need and nothing that they don’t. The radio solution for mobile workers in public works and other municipal roles looking for APX performance in a pared down, cost effective package.
APX N30 Brochure
APX N30 Data Sheet

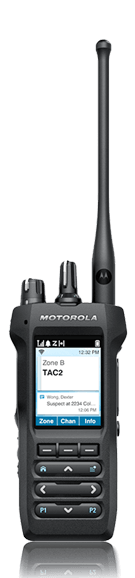

P25 Operation | Single-Band | Ultra Connectivity | Touchscreen
Simple, reliable and secure.
APX N50 is a slim yet tough pick-up-and-go radio that’s designed to give first responders, public-safety support and administrative staff secure communications they can rely on in the field. It provides a simple layout, loud audio, MACE hardware encryption and efficient batch programming capabilities to keep your fleet connected and collaborative - whenever, wherever.
APX N50 Brochure
APX N50 Data Sheet

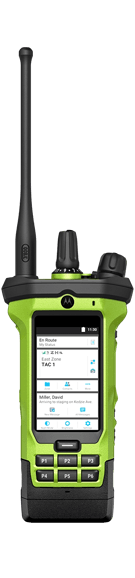

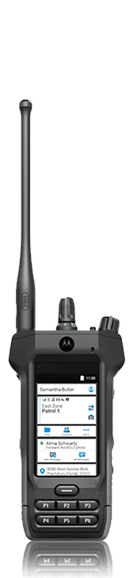

P25 Operation | Single-Band | Ultra Connectivity | Touchscreen
Keep your agency focused and moving forward within the public safety ecosystem.
Reliable and clear portable radios that are rugged and easy to use, are non negotiable. Advanced features working in a larger public safety ecosystem must deliver actionable intelligence for increased situational awareness. Our APX N70 smart radio is for this purpose. It provides police and other first responders the mission-critical communications and real-time information they need to stay connected and respond safely in any situation.
APX N70 Brochure
APX N70 Data Sheet

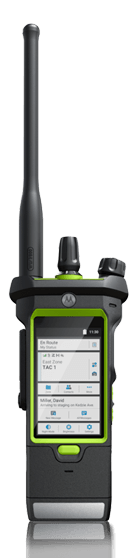

P25 Operation | All-Band | Ultra Connectivity | Touchscreen
Outperform The Unexpected
APX NEXT XN delivers unprecedented durability and safety with a design built to the latest standards for the fire service and keeps you one step ahead with advanced audio and intelligence at your fingertips.
APX Next XN Brochure
APX Next XN Brochure for Fire
APX Next XN Data Sheet
XVN500 Data Sheet

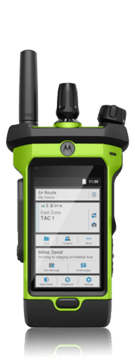

IN PUBLIC SAFETY, FOCUS IS YOUR GREATEST RESOURCE. MAKE SURE IT’S PROTECTED WITH APX NEXT™
Your radio is your lifeline. APX NEXT XE is our next step in advancing it. It’s designed to military standards for extreme ruggedness. The touchscreen works with or without gloves—in rain, dirt, and dust. Digital mics and high-power speakers deliver our best audio ever, while SmartConnect keeps you connected even beyond your P25 system. The result is a radio that works when you need it, without pause, distraction or doubt.
APX NEXT XE Brochure
APX Solutions Brief
APX NEXT Radio Buying Guide
APX NEXT XE Accessory Catalog
APX NEXT XE Data Sheet

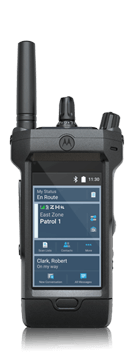

IN PUBLIC SAFETY, FOCUS IS YOUR GREATEST RESOURCE. MAKE SURE IT’S PROTECTED WITH APX NEXT™
Your radio is your lifeline. APX NEXT is our next step in advancing it. It’s designed to military standards for extreme ruggedness. The touchscreen works with or without gloves—in rain, dirt, and dust. Digital mics and high-power speakers deliver our best audio ever, while SmartConnect keeps you connected even beyond your P25 system. The result is a radio that works when you need it, without pause, distraction or doubt.
APX NEXT Datasheet
APX Solutions Brief
APX NEXT Radio Buying Guide
APX NEXT Accessory Catalog
P25 Operation | All-Band | Excellent Audio | 3 Rugged Models
Unlimited Mobility. Uncompromising Performance.
The APX 8000XE is redefining mission-critical communications by delivering an ultra-durable radio that combines unlimited interoperability, loud audio and secure Wi-Fi connectivity. With a dedicated channel knob and ability to withstand 500˚F (260˚C) heat exposure, the APX XE500 Remote Speaker Microphone is the perfect companion to the APX 8000XE. When combined, the APX 8000XE All-Band Portable Radio and XE500 Remote Speaker Microphone create the ultimate mission-critical solution designed for safety personnel in extreme environments.
Mission-critical Wireless Bluetooth, Radio Packet Data (Integrated Voice & Data), Text-Messaging, Voice Announcements, Radio Profiles, Dynamic Zone, Intelligent Lighting, Encryption, IP68 4 meter, 4 hours submersion, IMPRES Battery
Operation Modes:
Astro® 25 Two-Way Radios at a Glance Brochure
APX Accessory Catalog

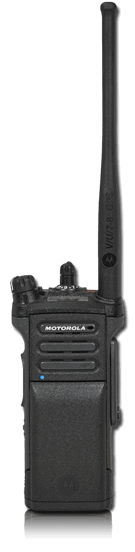

P25 Operation | All-Band | Excellent Audio | 3 Rugged Models
Unlimited Mobility. Uncompromising Performance.
With 4 RF bands and multi-mode system access, the APX 8000 knows no limits when it comes to interoperability. Whether it’s loud or windy, whether you whisper or yell, the Adaptive Audio Engine and ultra-loud speaker bring clarity into every conversation. With Wi-Fi access, the APX 8000 can quickly receive new codeplugs, firmware and software features in order to redeploy the radio fleet with ease as users keep talking without interruption. Intuitively designed with a familiar look and feel, the compact APX 8000 is always comfortable to use, from your grip to your holster.
Mission-critical Wireless Bluetooth, Radio Packet Data (Integrated Voice & Data), Text-Messaging, Voice Announcements, Radio Profiles, Dynamic Zone, Intelligent Lighting, Encryption, IP67 1 meter, 30 minute submersion, IMPRES Battery
Operation Modes:
Astro® 25 Two-Way Radios at a Glance Brochure
APX Accessory Catalog

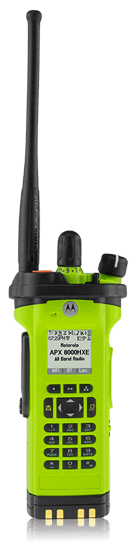

P25 Operation | All-Band | Excellent Audio | 3 Rugged Models
The APX 8000XE is redefining mission-critical communications by delivering an ultra-durable radio that combines unlimited interoperability, loud audio and secure Wi-Fi connectivity. With a dedicated channel knob and ability to withstand 500˚F (260˚C) heat exposure, the APX XE500 Remote Speaker Microphone is the perfect companion to the APX 8000XE. When combined, the APX 8000XE All-Band Portable Radio and XE500 Remote Speaker Microphone create the ultimate mission-critical solution designed for safety personnel in extreme environments.
Mission Critical Wireless Bluetooth, Radio Packet Data (Integrated Voice & Data), Text-Messaging, Voice Announcements, Radio Profiles, Dynamic Zone, Intelligent Lighting, Encryption, IP67 1 meter, 30 minute submersion, IMPRES Battery
Operation Modes:
Model 1.5
Full Bitmap Monochromatic LCD Top Display, 1 Line Text X 8 Characters, 1 Line of Icons, No Menu Support, Multi-Color Backlight.
H91TGD9PW5AN
700/800 MHz (763-870 MHz), VHF (136-174 MHz), UHF Range 1 (380-470 MHz), UHF Range 2 (450-520 MHz), 1,200 Channels
Model 2.5
Top Display Plus: Full Bitmap Color LCD Display, 4 Lines of Text X 14 Characters, 2 Lines of Icons, 1 Menu Line X 3 Menus, White Backlight. Backlight Keypad: 3 Soft Keys, 4 Direction Navigation Key, Home and Data Buttons.
H91TGD9PW6AN
700/800 MHz (763-870 MHz), VHF (136-174 MHz), UHF Range 1 (380-470 MHz), UHF Range 2 (450-520 MHz), 3,000 Channels
Model 3.5
Top Display Plus: Full Bitmap Color LCD Display, 4 Lines of Text X 14 Characters, 2 Lines of Icons, 1 Menu Line X 3 Menus, White Backlight. Backlight Keypad: 3 Soft Keys, 4 Direction Navigation Key, 4x3 Keypad, Home and Data Buttons.
H91TGD9PW7AN
700/800 MHz (763-870 MHz), VHF (136-174 MHz), UHF Range 1 (380-470 MHz), UHF Range 2 (450-520 MHz), 3,000 Channels
Astro® 25 Two-Way Radios at a Glance Brochure
APX Accessory Catalog

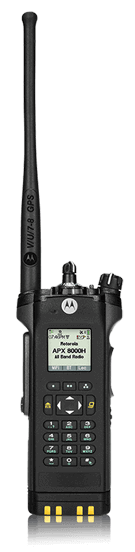

P25 Operation | All-Band | Excellent Audio | 3 Rugged Models
Unlimited Mobility. Uncompromising Performance.
With 4 RF bands and multi-mode system access, the APX 8000 knows no limits when it comes to interoperability. Whether it’s loud or windy, whether you whisper or yell, the Adaptive Audio Engine and ultra-loud speaker bring clarity into every conversation. With Wi-Fi access, the APX 8000 can quickly receive new codeplugs, firmware and software features in order to redeploy the radio fleet with ease as users keep talking without interruption. Intuitively designed with a familiar look and feel, the compact APX 8000 is always comfortable to use, from your grip to your holster.
Mission Critical Wireless Bluetooth, Radio Packet Data (Integrated Voice & Data), Text-Messaging, Voice Announcements, Radio Profiles, Dynamic Zone, Intelligent Lighting, Encryption, IP67 1 meter, 30 minute submersion, IMPRES Battery
Operation Modes:
Model 1.5
Full Bitmap Monochromatic LCD Top Display, 1 Line Text X 8 Characters, 1 Line of Icons, No Menu Support, Multi-Color Backlight.
H91TGD9PW5AN
700/800 MHz (763-870 MHz), VHF (136-174 MHz), UHF Range 1 (380-470 MHz), UHF Range 2 (450-520 MHz), 1,200 Channels
Model 2.5
Top Display Plus: Full Bitmap Color LCD Display, 4 Lines of Text X 14 Characters, 2 Lines of Icons, 1 Menu Line X 3 Menus, White Backlight. Backlight Keypad: 3 Soft Keys, 4 Direction Navigation Key, Home and Data Buttons.
H91TGD9PW6AN
700/800 MHz (764-870 MHz), VHF (136-174 MHz), UHF Range 1 (380-470 MHz), UHF Range 2 (450-520 MHz), 3,000 Channels
Model 3.5
Top Display Plus: Full Bitmap Color LCD Display, 4 Lines of Text X 14 Characters, 2 Lines of Icons, 1 Menu Line X 3 Menus, White Backlight. Backlight Keypad: 3 Soft Keys, 4 Direction Navigation Key, 4x3 Keypad, Home and Data Buttons.
H91TGD9PW7AN
700/800 MHz (763-870 MHz), VHF (136-174 MHz), UHF Range 1 (380-470 MHz), UHF Range 2 (450-520 MHz), 3,000 Channels
Astro® 25 Two-Way Radios at a Glance Brochure
APX Accessory Catalog

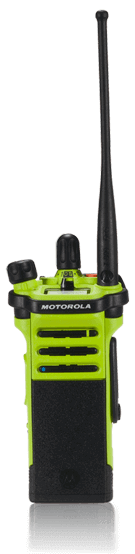

P25 Operation | Extreme Ergonomics | Advanced Features | Rugged Specifications
The Lightweight Heavyweight
In the heat of a wildfire or the smoke of a structure fire, you can't afford to struggle with controls or strain to hear commands. You need a radio so reliable and responder-focused, it's second nature to use. Working with first responders around the world, Motorola developed APX radios to be safer and tougher than others - and to deliver innovative technology in an ultra-rugged, glove-friendly form.
Motorola's APX 6000XE is the "lightweight heavyweight" - a small, single band radio with extreme ergonomics and excellent audio that takes on the tough tasks of fire service and EMS. It's the two-way radio that can strengthen safety precisely because it is engineered for extreme conditions.
Available in 3 Models, Man Down, Intelligent Lighting, Radio Profiles, Unified Call List (Models 2 and 3 Only), User Programmable Voice Announcement, Meets Applicable MIL-STD-810C, D, E, F and G, Ships Standard Intrinsically Safe and Rugged, Yellow and Green Colored Housing Options, Superior Audio Features.
Systems Supported:
Trunking standards supported:
Analog MDC-1200 and Digital APCO P25 Conventional
Models Available:
Model 1.5
Full Bitmap Monochromatic LCD Top Display, 1 Line Text X 8 Characters, 1 Line of Icons, No Menu Support, Multi-Color Backlight.
H98UCD9PW5AN 700/800 MHz (763-870 MHz), 1-2.5 Watts, 96 Channels
H98KGD9PW5AN VHF (136-174 MHz), 1-6 Watts, 96 Channels
H98QDD9PW5AN UHF Range 1 (380-470 MHz), 1-5 Watts, 96 Channels
H98SDD9PW5AN UHF Range 2 (450-520 MHz), 1-5 Watts, 96 Channels
Model 2.5
Top Display Plus: Full Bitmap Color LCD Display, 4 Lines of Text X 14 Characters, 2 Lines of Icons, 1 Menu Line X 3 Menus, White Backlight. Backlight Keypad: 3 Soft Keys, 4 Direction Navigation Key, Home and Data Buttons.
H98UCF9PW6AN 700/800 MHz (763-870 MHz), 1-2.5 Watts, 1,000 Channels
H98KGF9PW6AN VHF (136-174 MHz), 1-6 Watts, 1,000 Channels
H98QDF9PW6AN UHF Range 1 (380-470 MHz), 1-5 Watts, 1,000 Channels
H98SDF9PW6AN UHF Range 2 (450-520 MHz), 1-5 Watts, 1,000 Channels
Model 3.5
Top Display Plus: Full Bitmap Color LCD Display, 4 Lines of Text X 14 Characters, 2 Lines of Icons, 1 Menu Line X 3 Menus, White Backlight. Backlight Keypad: 3 Soft Keys, 4 Direction Navigation Key, 4x3 Keypad, Home and Data Buttons.
H98UCH9PW7AN 700/800 MHz (763-870 MHz), 1-2.5 Watts, 1,000 Channels
H98KGH9PW7AN VHF (136-174 MHz), 1-6 Watts, 1,000 Channels
H98QDH9PW7AN UHF Range 1 (380-470 MHz), 1-5 Watts, 1,000 Channels
H98SDH9PW7AN UHF Range 2 (450-520 MHz), 1-5 Watts, 1,000 Channels
Astro® 25 Two-Way Radios at a Glance Brochure
APX Accessory Catalog
APX 6000XE Series Spec Sheet

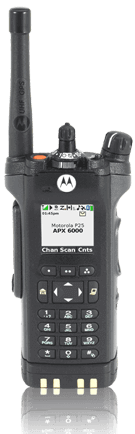

P25 Operation | Advanced Features | Excellent Audio | 3 Rugged Models
A Smart Investment Delivering Leading-Edge Technology In A Lightweight Design
Delivering outstanding performance in a compact form factor without sacrificing the features you need most. The APX 6000 is the next generation of ruggedly-reliable performers that gives you the advanced features such as Mission Critical Wireless and GPS location tracking in a small, P25 Phase 2 capable radio. Whether you're on patrol or racing to a fire, the APX 6000 puts you in greater control of your safety, response time and technology investment.
Focus on the task - not the technology - with the hard-working mission-critical mobile that turns mission-critical into mission complete.
Available in 3 Models, Integrated GPS Capable, Man Down, Intelligent Lighting, Radio Profiles, Unified Call List (Models 2.5 and 3.5 Only), User Programmable Voice Announcement, Meets Applicable MIL-STD-810C, D, E, F and G, IP67 Standard (Submersible 1 Meter, 30 Minutes), Yellow and Green Colored Housing Options, Superior Audio Features.
Systems Supported:
Trunking standards supported:
Analog MDC-1200 and Digital APCO P25 Conventional
Models Available:
Model 1.5
Full Bitmap Monochromatic LCD Top Display, 1 Line Text X 8 Characters, 1 Line of Icons, No Menu Support, Multi-Color Backlight.
H98UCD9PW5AN 700/800 MHz (763-870 MHz), 1-2.5 Watts, 96 Channels
H98KGD9PW5AN VHF (136-174 MHz), 1-6 Watts, 96 Channels
H98QDD9PW5AN UHF Range 1 (380-470 MHz), 1-5 Watts, 96 Channels
H98SDD9PW5AN UHF Range 2 (450-520 MHz), 1-5 Watts, 96 Channels
Model 2.5
Top Display Plus: Full Bitmap Color LCD Display, 4 Lines of Text X 14 Characters, 2 Lines of Icons, 1 Menu Line X 3 Menus, White Backlight. Backlight Keypad: 3 Soft Keys, 4 Direction Navigation Key, Home and Data Buttons.
H98UCF9PW6AN 700/800 MHz (763-870 MHz), 1-2.5 Watts, 1,000 Channels
H98KGF9PW6AN VHF (136-174 MHz), 1-6 Watts, 1,000 Channels
H98QDF9PW6AN UHF Range 1 (380-470 MHz), 1-5 Watts, 1,000 Channels
H98SDF9PW6AN UHF Range 2 (450-520 MHz), 1-5 Watts, 1,000 Channels
Model 3.5
Top Display Plus: Full Bitmap Color LCD Display, 4 Lines of Text X 14 Characters, 2 Lines of Icons, 1 Menu Line X 3 Menus, White Backlight. Backlight Keypad: 3 Soft Keys, 4 Direction Navigation Key, 4x3 Keypad, Home and Data Buttons.
H98UCH9PW7AN 700/800 MHz (763-870 MHz), 1-2.5 Watts, 1,000 Channels
H98KGH9PW7AN VHF (136-174 MHz), 1-6 Watts, 1,000 Channels
H98QDH9PW7AN UHF Range 1 (380-470 MHz), 1-5 Watts, 1,000 Channels
H98SDH9PW7AN UHF Range 2 (450-520 MHz), 1-5 Watts, 1,000 Channels
Astro® 25 Two-Way Radios at a Glance Brochure
APX Accessory Catalog
APX 6000 Series Spec Sheet

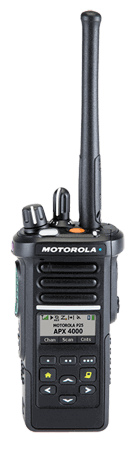

P25 Operation | Compact Form Factor | Key Features | Durable Design
Mission Ready When It Matters Most
Chemical spill. Catastrophic storm. Power outage. When every minute matters, you must communicate instantly with other agencies and responders. But how do you prepare for a disaster and keep control of operating costs? That's where the APX 4000 P25 portable radio answers the call, expertly and affordably.
The APX 4000 delivers all the benefits of TDMA technology in the smallest P25 capable portable in the industry. Easy to use, tough as nails, a hard value to beat, it seamlessly connects public safety agencies and public works for fast, interoperable communications.
Available in 2 models, Embedded digital signaling (ASTRO & ASTRO 25), Man Down, Integrated GPS capable, Lightbar with Intelligent Lighting, Radio Profiles, Unified Call List, User programmable Voice Announcement, Meets Applicable MIL-STD-810C, D, E, F and G, IP67 standard (submersible 1 meter, 30 minutes), Superior Audio Features
Systems Supported:
Trunking standards supported:
Analog MDC-1200 and Digital APCO P25 Conventional
Models Available:
Model 2
Full Bitmap Color LCD Display, 3 Lines of Text X 14 Characters, 1 Line of Icons, 1 Menu Line X 3 Menus, White Backlight.
Backlight Keypad, 3 Soft Keys, 4 Direction Navigation Key, Home and Data Buttons.
H51UCF9PW6AN 700/800 MHz (763-870 MHz), 1-2.5 Watts, 512 Channels
H51KDF9PW6AN VHF (136-174 MHz), 1-6 Watts, 512 Channels
H51QDF9PW6AN UHF Range 1 (380-470 MHz), 1-5 Watts, 512 Channels
H51SDF9PW6AN UHF Range 2 (450-520 MHz), 1-5 Watts, 512 Channels
H51WCF9PW6AN 900 MHz (896-940 MHz), 1-2.5 Watts, 512 Channels
Model 3
Full Bitmap Color LCD Display, 3 Lines of Text X 14 Characters, 1 Line of Icons, 1 Menu Line X 3 Menus, White Backlight.
Backlight Keypad, 3 Soft Keys, 4 Direction Navigation Key, 4x3 Keypad, Home and Data Buttons.
H51UCH9PW7AN 700/800 MHz (764-870 MHz), 1-2.5 Watts, 512 Channels
H51KDH9PW7AN VHF (136-174 MHz), 1-6 Watts, 512 Channels
H51QDH9PW7AN UHF Range 1 (380-470 MHz), 1-5 Watts, 512 Channels
H51SDH9PW7AN UHF Range 2 (450-520 MHz), 1-5 Watts, 512 Channels
H51WCH9PW7AN 900 MHz (896-940 MHz), 1-2.5 Watts, 512 Channels
Astro® 25 Two-Way Radios at a Glance Brochure
APX Accessory Catalog
APX 4000 Series Spec Sheet
P25 Operation | Smart Interoperability | Great Value | Powerfully Simple
Essential communication. Exceptional service.
The APX 900 is designed for public works, government services and education organizations who need essential communication at an affordable price. It delivers great core features, with an efficiency-focused design – including Bluetooth® wireless connectivity.
Available in model 2 (front display and 4 softkeys), and model 3 (front display with limited keypad).
Models Available:
Model 2
Full Bitmap Color LCD Display, 3 Lines of Text X 14 Characters, 1 Line of Icons, 1 Menu Line X 2 Menus, White Backlight Backlit Keypad, 2 Soft Keys, 4-Direction Navigation Key, Home and Back Buttons
H92KDF9PW6AN VHF (136-174 MHz), 1-5 Watts, 512 Channels
H92QDF9PW6AN UHF Range 1 (380-470 MHz), 1-5 Watts, 512 Channels
H92SDF9PW6AN UHF Range 2 (450-520 MHz), 1-5 Watts, 512 Channels
H92UCF9PW6AN 700/800 MHz (764-776 MHz / 851-870 MHz), 1-2.5 Watts, 512 Channels
H92WCF9PW6AN 900 MHz (935-941 MHz), 1-2.5 Watts, 512 Channels
Model 3
Full Bitmap Color LCD Display, 3 Lines of Text X 14 Characters, 1 Line of Icons, 1 Menu Line X 2 Menus, White Backlight
Backlit Keypad, 2 Soft Keys, 4-Direction Navigation Key, 4x3 Keypad, Home and Back Buttons
H92KDH9PW7AN VHF (136-174 MHz), 1-5 Watts, 512 Channels
H92QDH9PW7AN UHF Range 1 (380-470 MHz), 1-5 Watts, 512 Channels
H92SDH9PW7AN UHF Range 2 (450-520 MHz), 1-5 Watts, 512 Channels
H92UCH9PW7AN 700/800 MHz (764-776 MHz / 851-870 MHz), 1-2.5 Watts, 512 Channels
H92WCH9PW7AN 900 MHz (935-941 MHz), 1-2.5 Watts, 512 Channels
